Balcrank Products - Lubrication Systems & Components

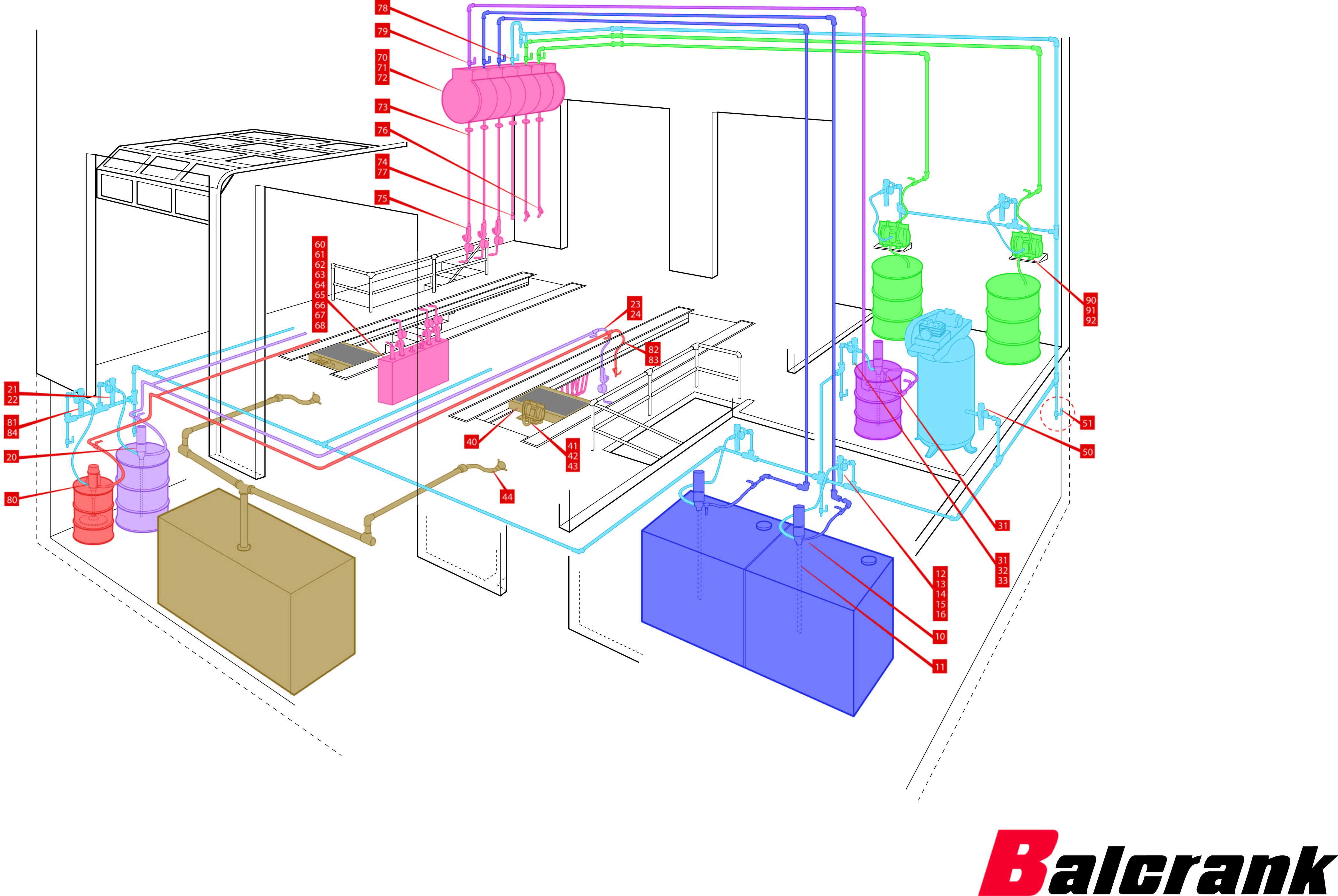

Balcrank products are designed for automotive quick lube facilities, dealerships, fleet, and commercial vehicle applications. A complete line of pumps, retractable hose reels, patented waste oil drains, control handles, fluid inventory control, and other lubrication equipment accessories.



New Panther HP 3:1 and 5:1 Pumps are "true ratio" pumps designed for long life, balanced flow displacement, and highly efficient operation offering:

Balcrank Pump Specifications

Basis: 10W30 oil, 72F, 3/4" pipe, 150 psi air pressure, minimum flow 1 gpm at 100 psi fluid pressure.

  Bobcat
1.3:1
Bobcat 3:1 Panther
3:1
Panther
5:1
Tiger 5:1 Giant Jet 5:1 Giant Jet 10:1
Pressure Ratio 1.3:1 3:1 3:1 5:1 5:1 5:1 10:1
Transfer Distance 150 ft. 500 ft. 500 ft. 700 ft. 700 ft. 700 ft. 1,000 ft.
Dispense Points 1 reel 2-reel simul-
taneous service
5-reel simul-
taneous service
4-reel simul-
taneous service
6-reel simul-
taneous service
8-reel simul-
taneous service
6-reel simul-
taneous service
Air Motor Bore 2.12"
(1.77" eff. dia.)
2.12"
(1.77" eff. dia.)
3.49"
(2.50" eff. dia.)
3.49"
(2.50" eff. dia.)
4.25"
(3.50" eff. dia.)
6.00"
(4.25" eff. dia.)
6.00"
(4.25" eff. dia.)
Stroke 3.50" 3.50" 3.0" 3.0" 3.25" 3.25" 3.25"
Operating Air Pressure psi 40-150 40-150 10-150 10-150 30-150 30-150 30-150
Max. Air Consumption
(SCFM, 150 psi air)
28 28 38 45.6 32 60 60
Free Flow
gpm @ 100 psi air pressure
14.0 6.3 7.9 5.8 10.0 18.0 9.0
Max. Fluid Stall Pressure 225 450 450 750 750 750 1450
Suction lift (in. mercury) 18 18 20 20 18 18 18
Air Inlet Port Size (NPTF) 1/4" 1/4" 1/4" 1/4" 3/8" 1/2" 1/2"
Fluid Inlet Port Size (NPT) 1" F 3/4" F 1" F / 1-1/2" M 1" F / 1-1/2" M 1" F 1-1/2" F 1-1/2" F
Fluid Outlet Port Size (NPTF) 3/4" 1/2" 1/2" 1/2" 3/4" 3/4" 3/4"
Cycles per Gallon 30 80 28 44 25 15 30
Wetted Materials Carbon Steel, Buna, Aluminum Carbon Steel, Buna, Aluminum Nickel Plated Steel, Buna, Aluminum Nickel Plated Steel, Buna, Aluminum Carbon Steel, Buna, Aluminum Carbon Steel, Buna, Aluminum Carbon Steel, Buna, Aluminum
Maximum Gallons of Oil Dispensed per Year Bobcat 1.3:1 - 24,000 Bobcat 3:1 - 10,000 Panther 3:1 - 28,000 Panther 5:1 - 18,000 Tiger 5:1 - 44,000 Giant Jet 5:1 - 120,000 Giant Jet 10:1 - 65,000




New Panther HP 3:1 and 5:1 Pumps are "true ratio" pumps designed for long life, balanced flow displacement, and highly efficient operation offering:

bulletBuilt in presssurer relief
bulletHeavy duty, long stroke, large displacement air motor with thick wall housing
bulletPositive trip mechanism to prevent stalling
bulletEnlarged flow passages and high performance check valves for high flow operations
bulletFive year warranty and high value point
bulletNickel plated wetted parts
bulletSmooth, quiet operation





Tiger HP 5:1 Pump is designed for distribution to 750 ft. and 6 reel simultaneous service and features:

bulletBuilt in presssurer relief
bulletHeavy duty, long stroke, large displacement air motor with thick wall housing
bulletDouble acting design and balanced flow displacement
bulletQuiet operation
bulletOptional corrosion resistant models available
